Quick Guide

Manually set a static IP address on Raspberry Pi OS Trixie

SSH into the Raspberry Pi


                 Change the 10.x.x.x to your IP Address:
  		 sudo nmcli c mod "Wired connection 1" ipv4.addresses 10.0.0.220/24 ipv4.method manual
                 sudo nmcli con mod "Wired connection 1" ipv4.gateway 10.0.0.1
                 Change the 8.x.x.x to your DNS IP Address.
                 sudo nmcli con mod "Wired connection 1" ipv4.dns "8.8.8.8,8.8.4.4"
                 Restart the connection to apply the changes:
                 sudo nmcli c down "Wired connection 1" && sudo nmcli c up "Wired connection 1"

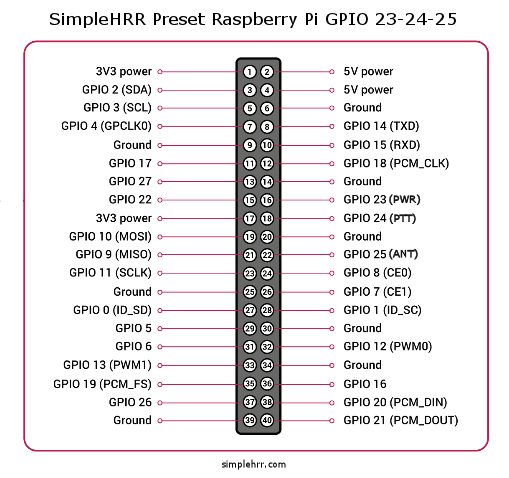

Preset But Changeable Default GPIO 23-24-25



                Power ON/OFF (PWR) GPIO pin-16 GPIO 23
                Push2Talk (PTT) GPIO pin-18 GPIO 24
                External Antenna (ANT) GPIO pin-22 GPIO 25

Simple Ham Radio Default GPIO 23-24-25 Icom - Yaesu
